Case 1200 Series Closing Wheel Assembly for Liquid Fertilizer Tube

This product does not fit on the 2150 Case Planter. For an option for that planter, see part number TT-321.

This tube applies any liquid fertilizer solution beside the seed trench, behind the packing wheel. The liquid fertilizer tubes are sold as one unit, not in pairs. However if you do opt for two tubes behind each closing wheel, Totally Tubular does sell a 3/8" poly Y-splitter to assist in getting fertilizer to each side.

Liquid Fertilizer Tube

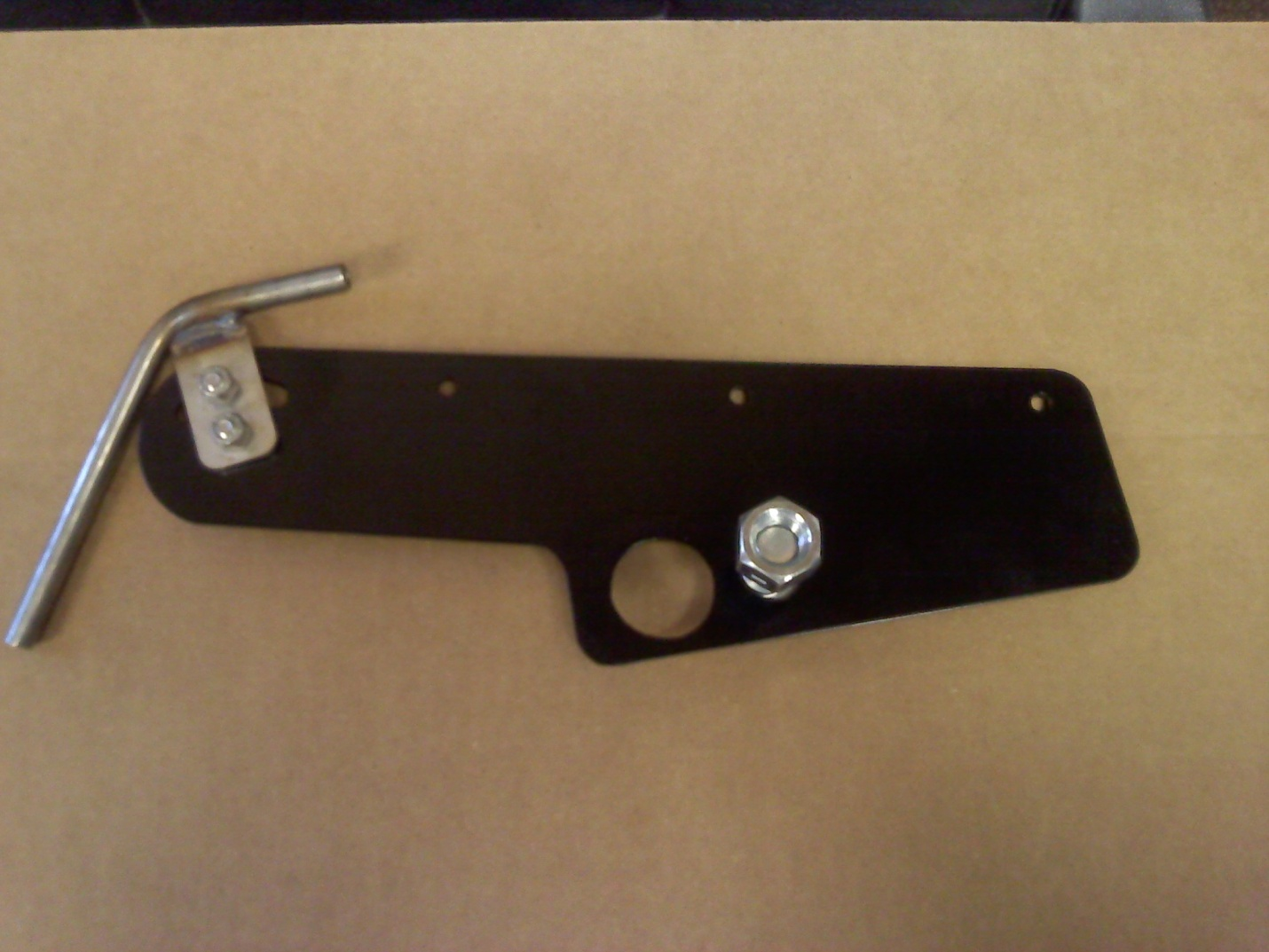

Installation Instructions for Model TT300 Case

Step 1

Bracket can be mounted on left or right side of packing wheels, however tube must be on inside of bracket, not the outside, due to possible damage from cornstalks.

Step 2

The large hole in the bracket goes around the bolt on packing wheel arm. The small hole is for the nut and 5/8” bolt provided which is bolted to the existing hole in the packing wheel arm.

Step 3

Mount tube with ¼ inch stainless steel bolts. Adjust the tube according to the angle preferred, tighten bolts.

Step 4

The zip ties provided are for the small three holes on the top of the bracket to assist in holding the hose going to the tube.

Recommend replacing disc openers when you put our fertilizer tubes on.
